Information on used Solar Module
Overseas model number is LG305N1C-B3
It's the same panel.
| LG305N1C-A3 |
| Mono crystal 305w |
| We will sell from 2,336 sheets. |
| Hokkaido Prefecture Iwamisawa city On-site delivery. |

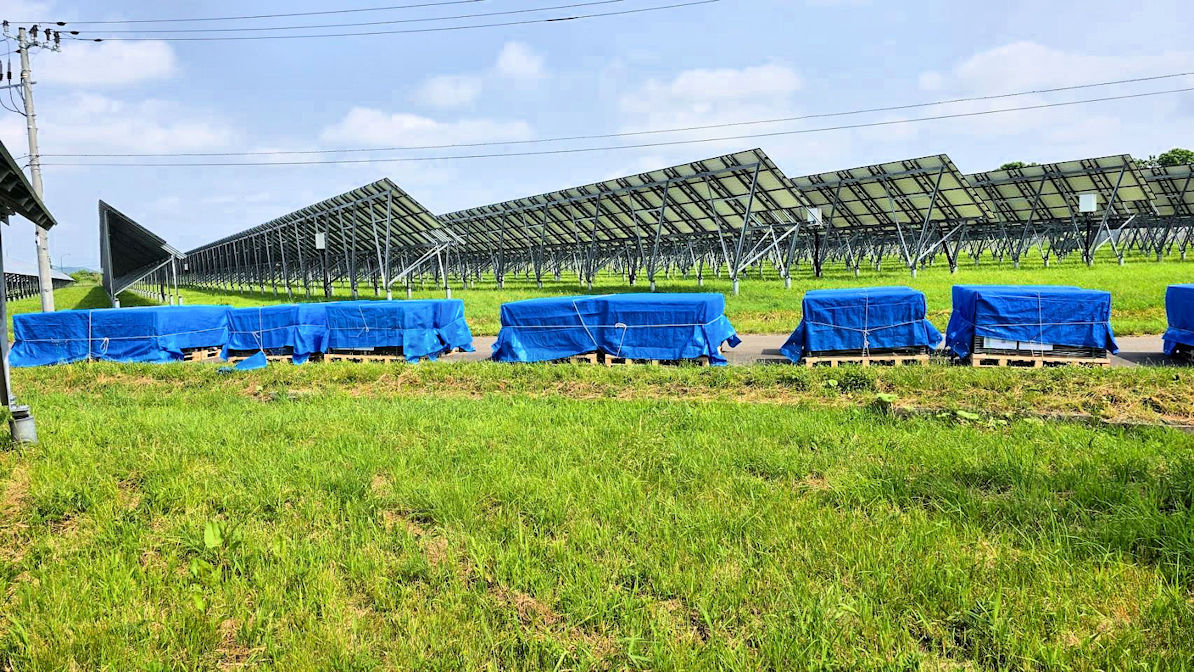

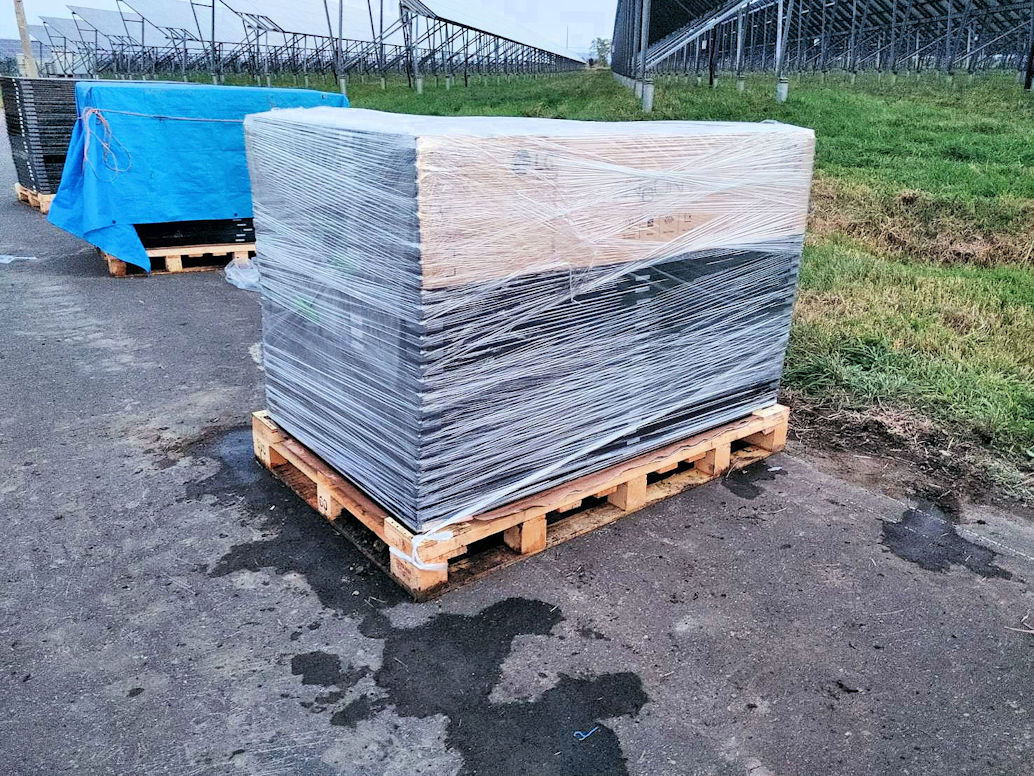

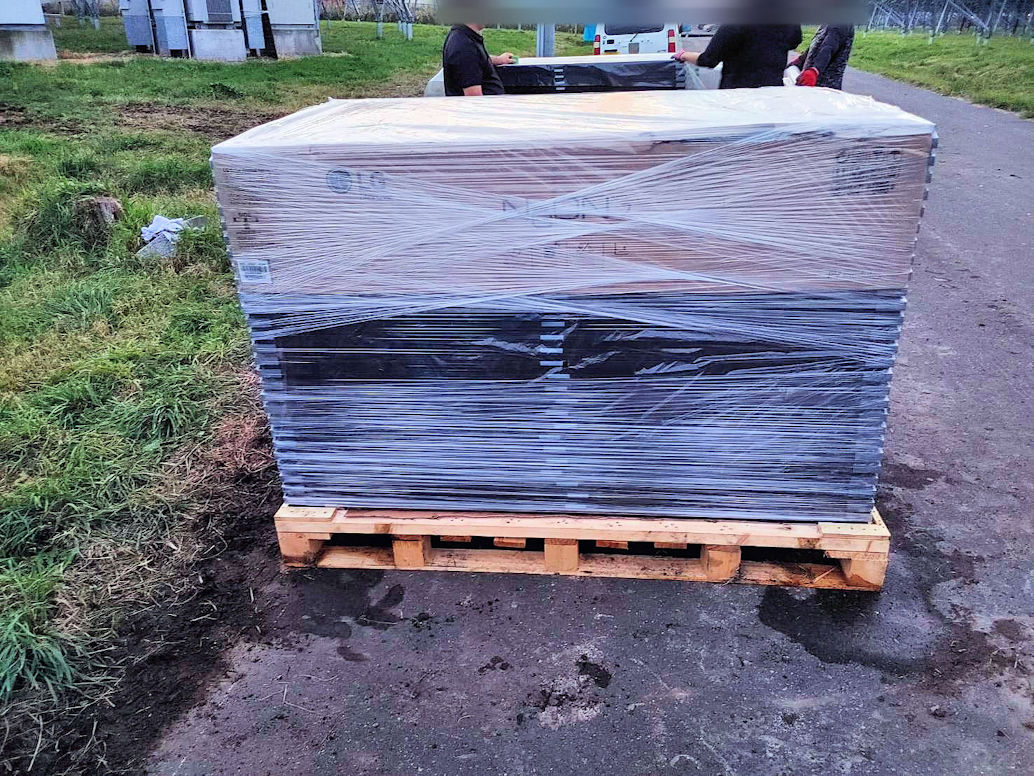

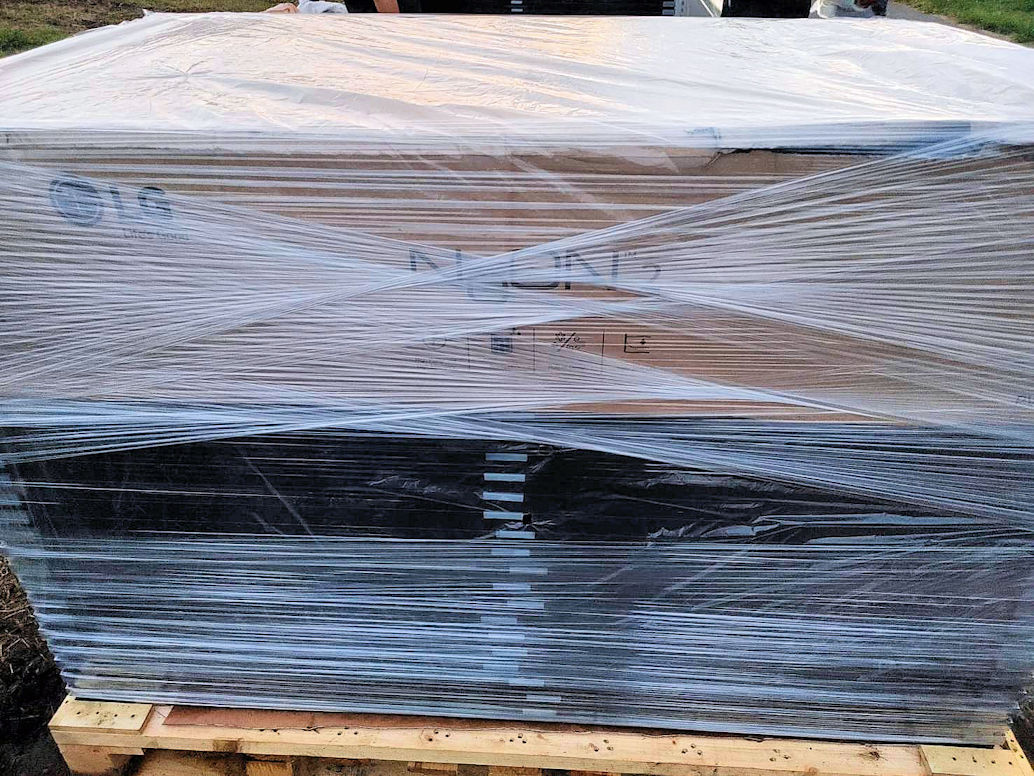

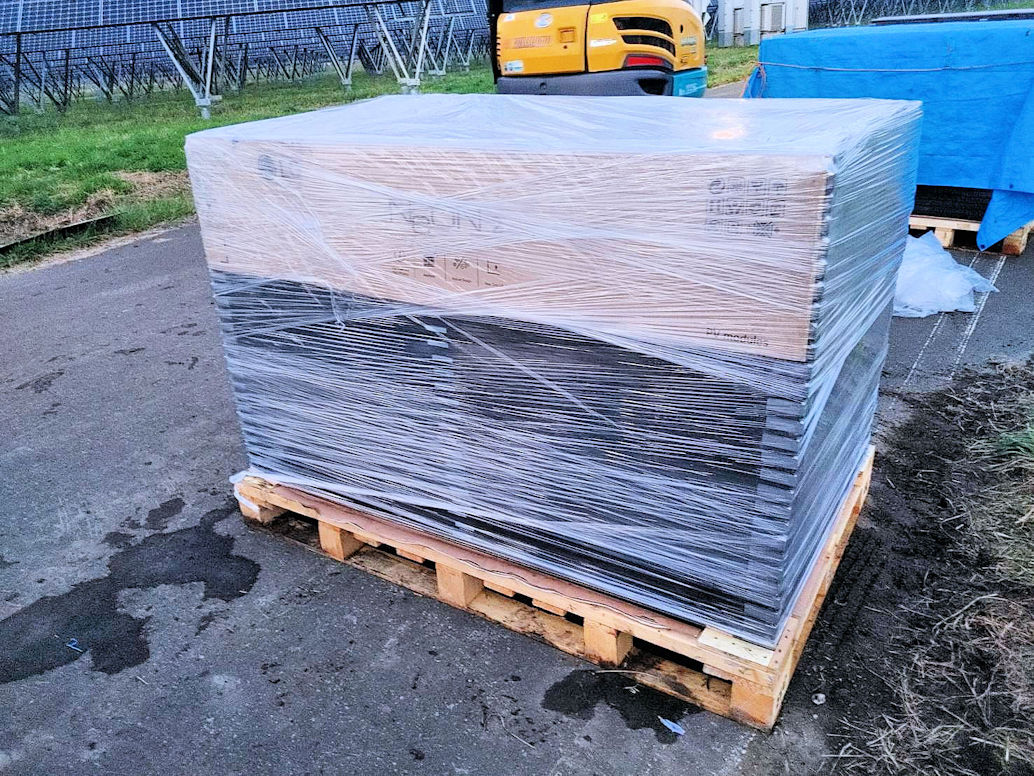

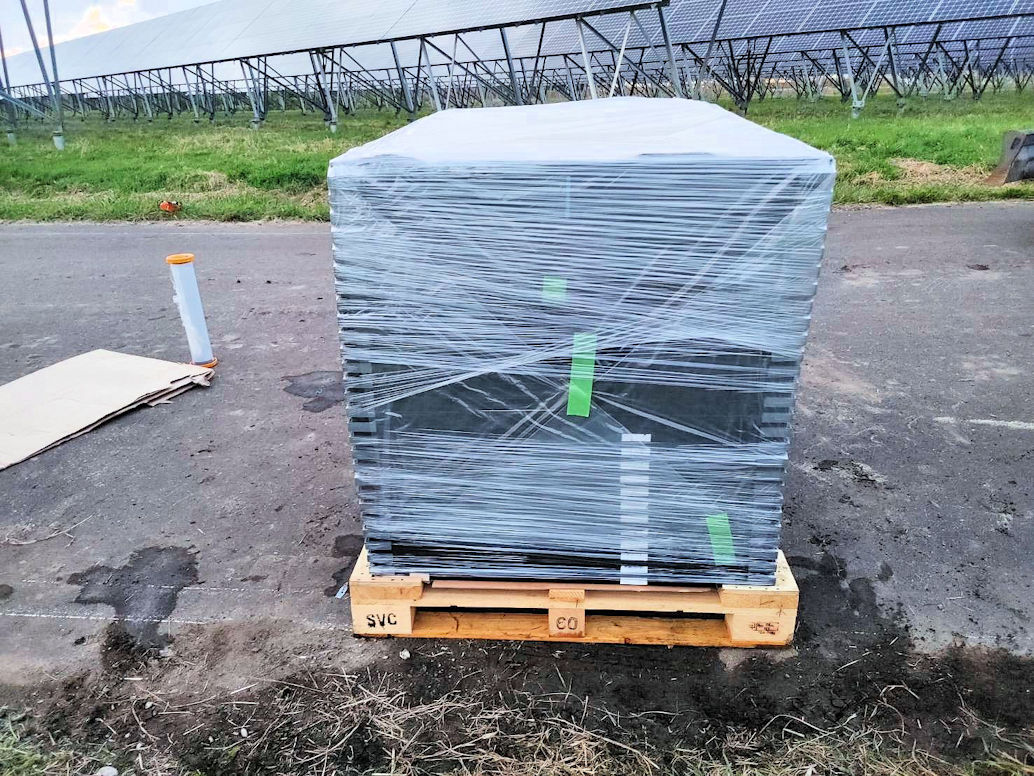

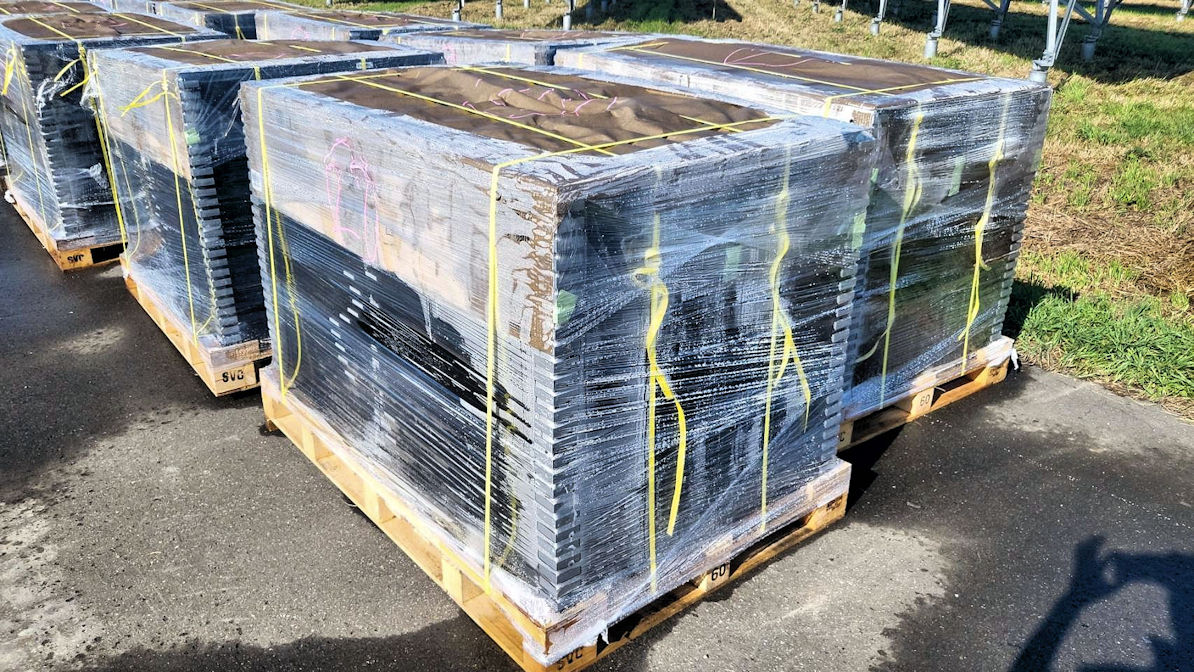

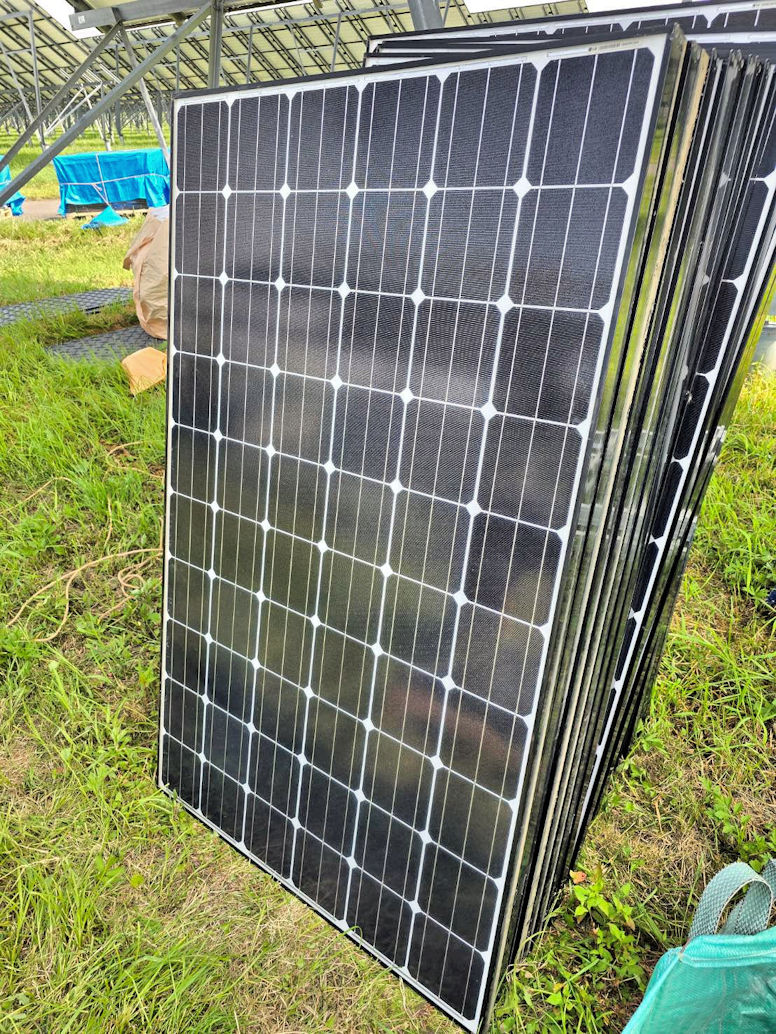

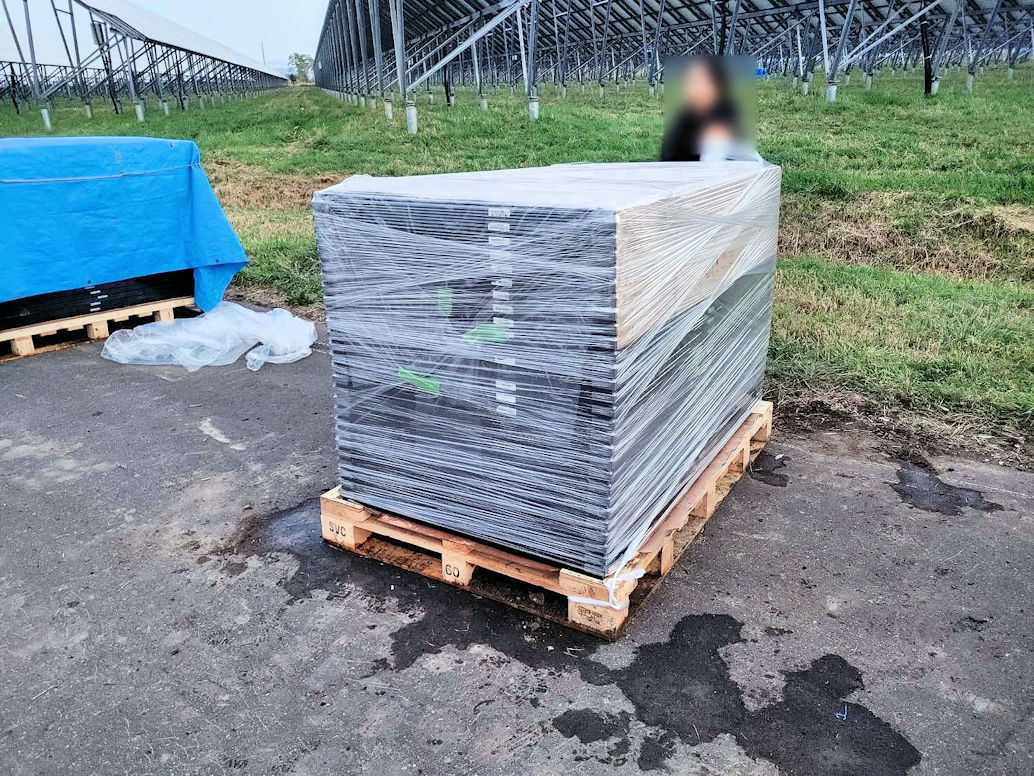

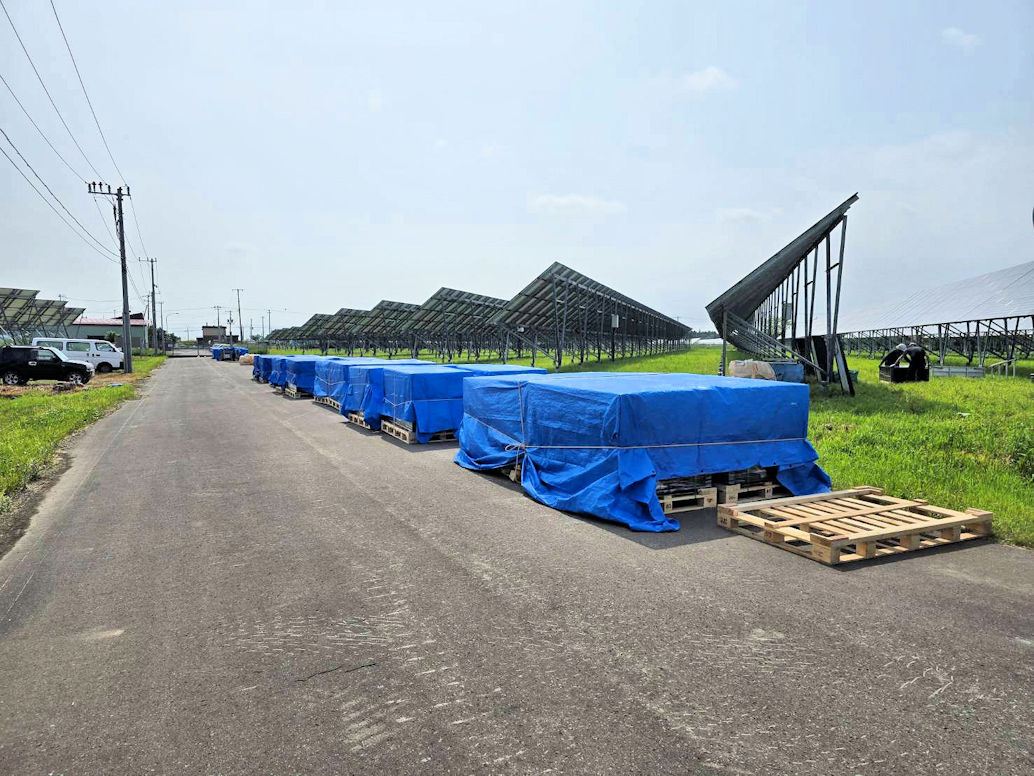

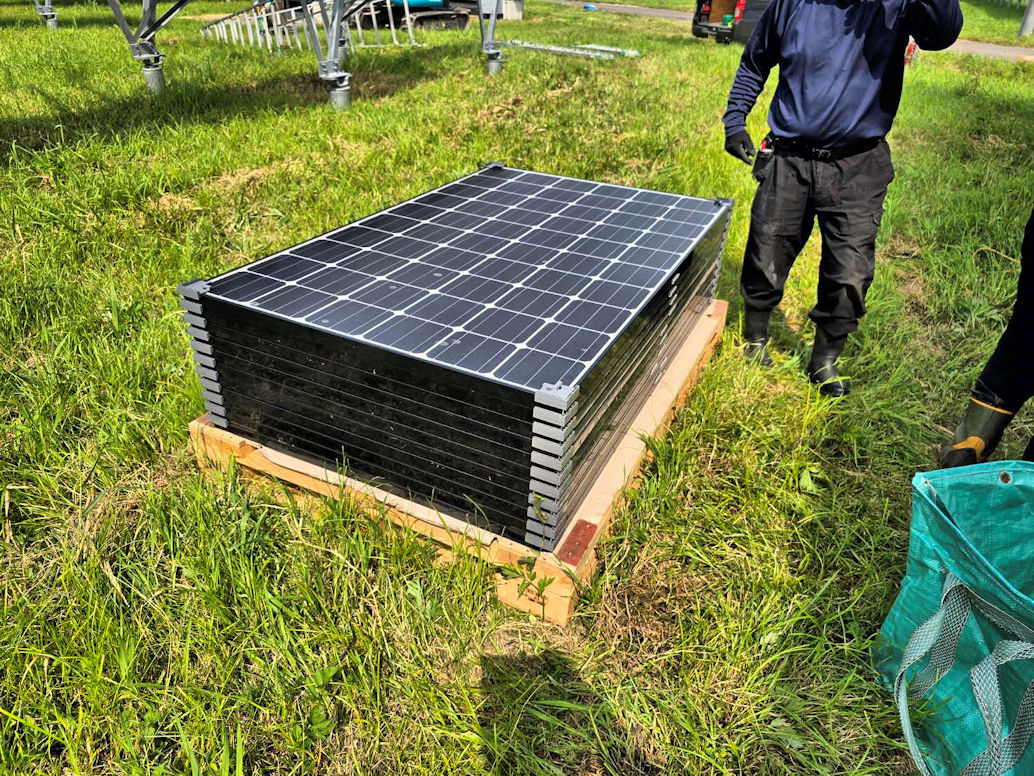

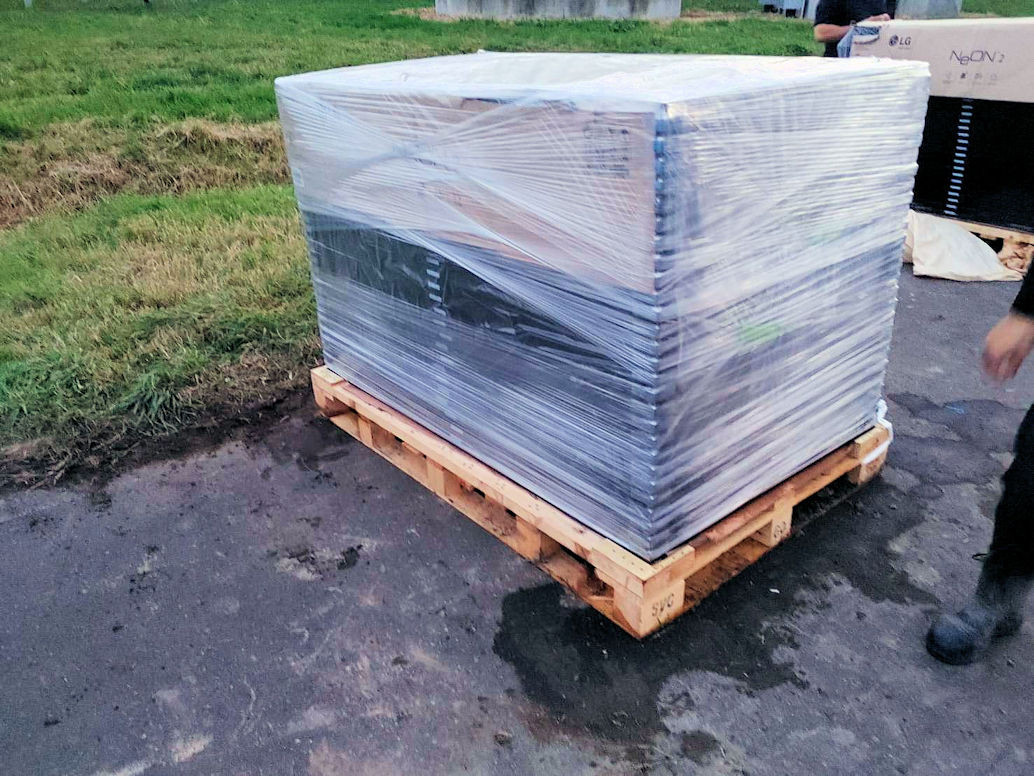

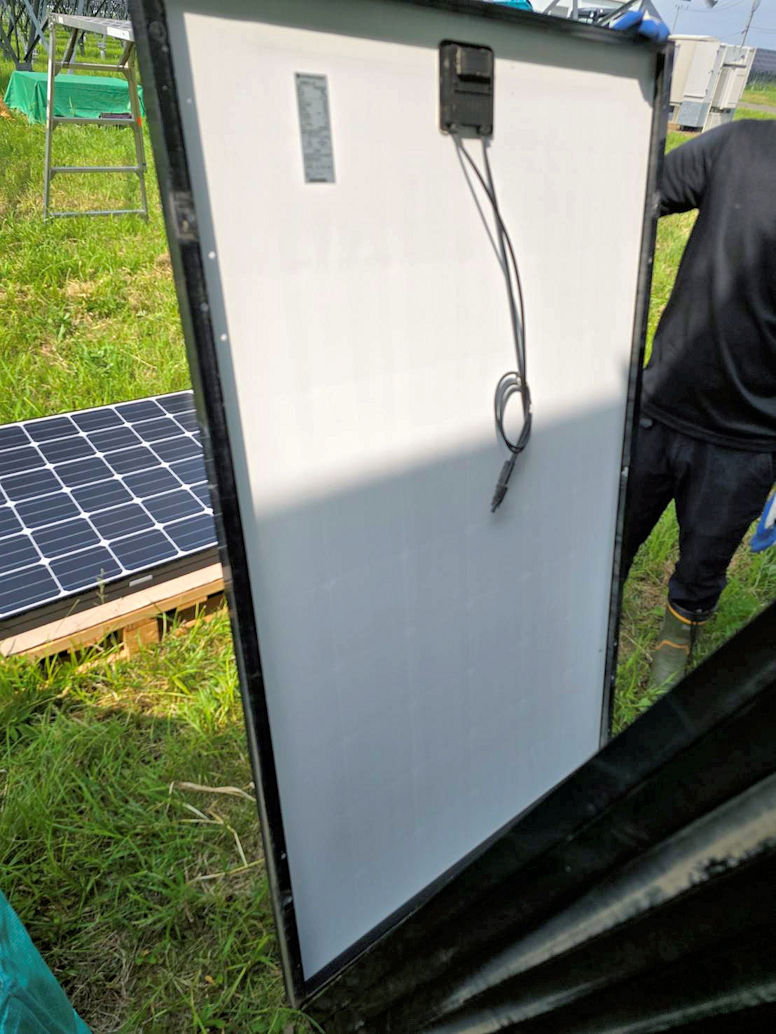

| It is currently in the state of the photo. |
| Working as is condition. No guarantee. Please look at the photo carefully. |
|

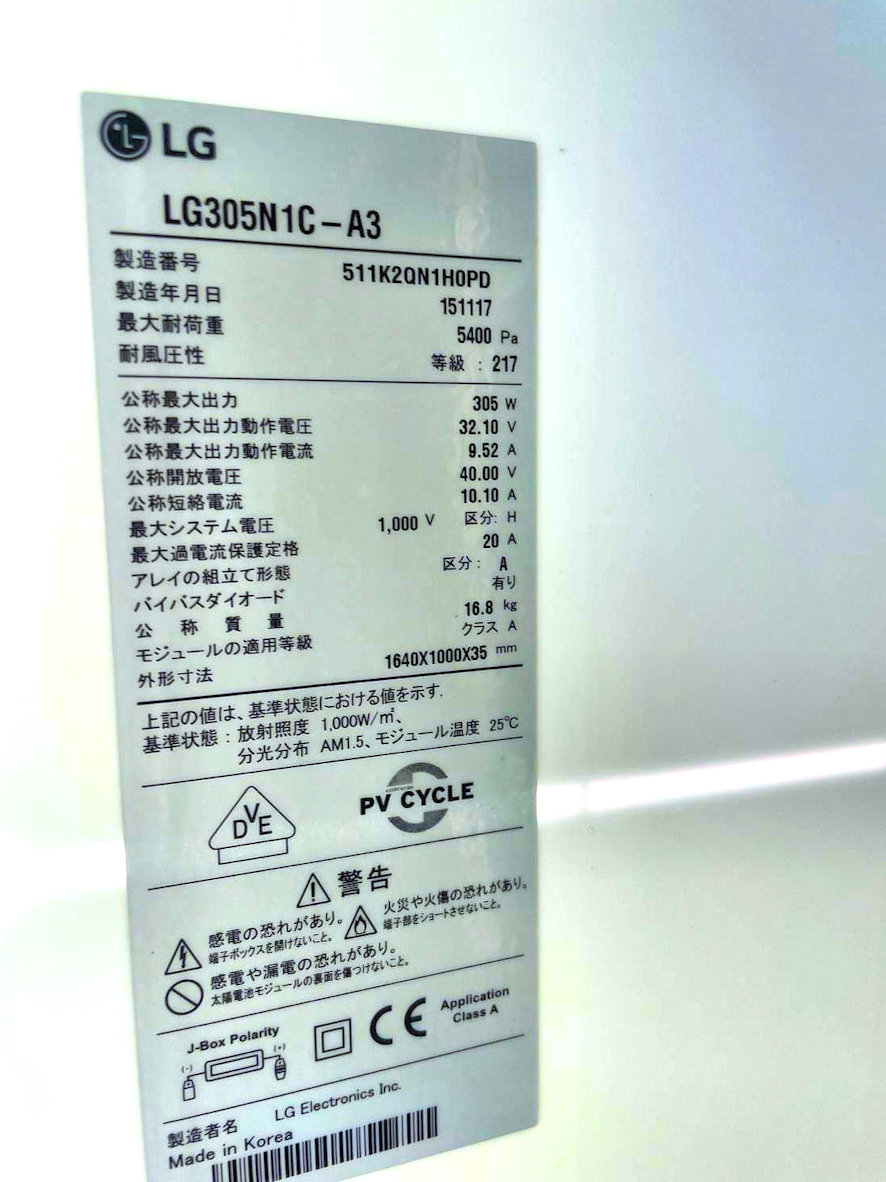

| Nominal power (Pnom). |
: 305 w |
| panel conversion efficiency. |
: 20.1% |
| Rated voltage (Vmpp). |
: 32.1 v |
| Rated current (Impp). |
: 9.52 A |
| Open circuit voltage (Voc). |
: 40 V |
| Short circuit current (Isc). |
: 10.1A |
| maximum system voltage. (v) |
: 1000 (IEC) |
| maximum series fuse (A). |
: 20 |
| Pmpp |
: -0.41% ℃ |
| Voc. |
: -0.29% ℃ |
| Isc. |
: 0.04% ℃ |
* Cautionary note

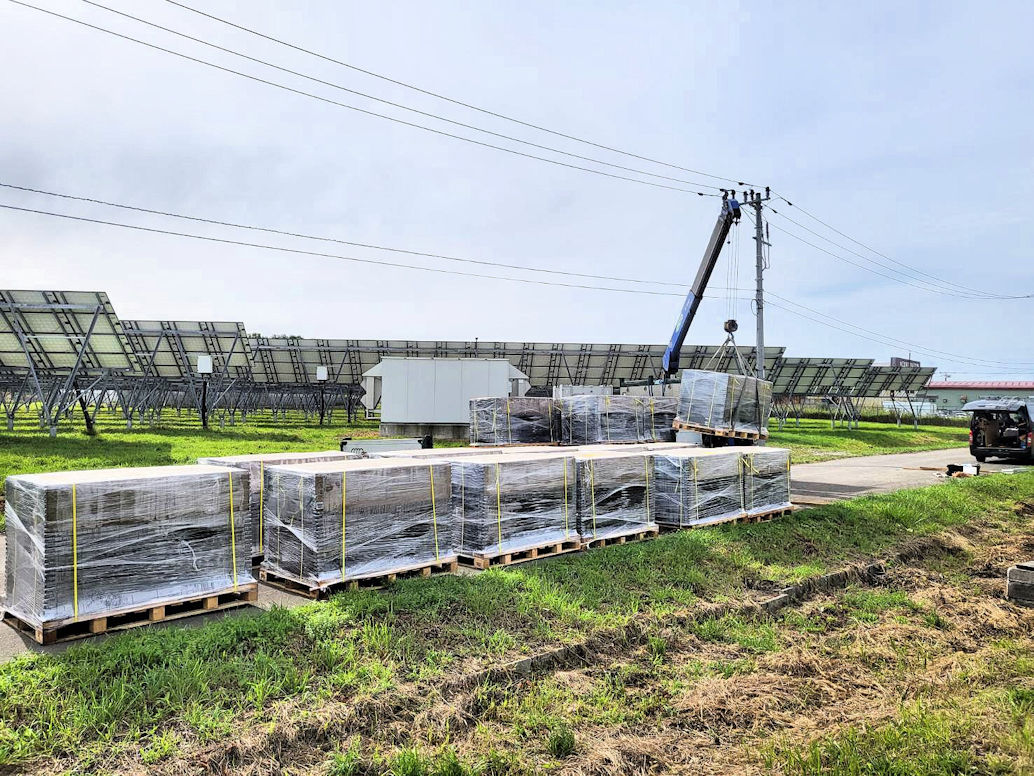

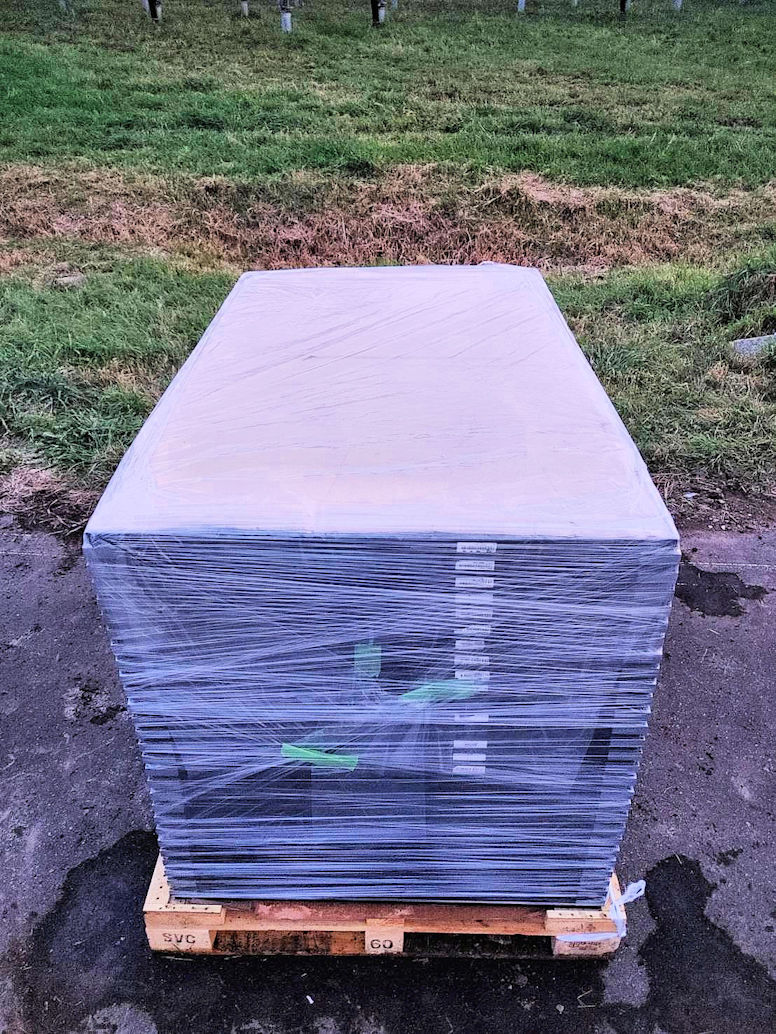

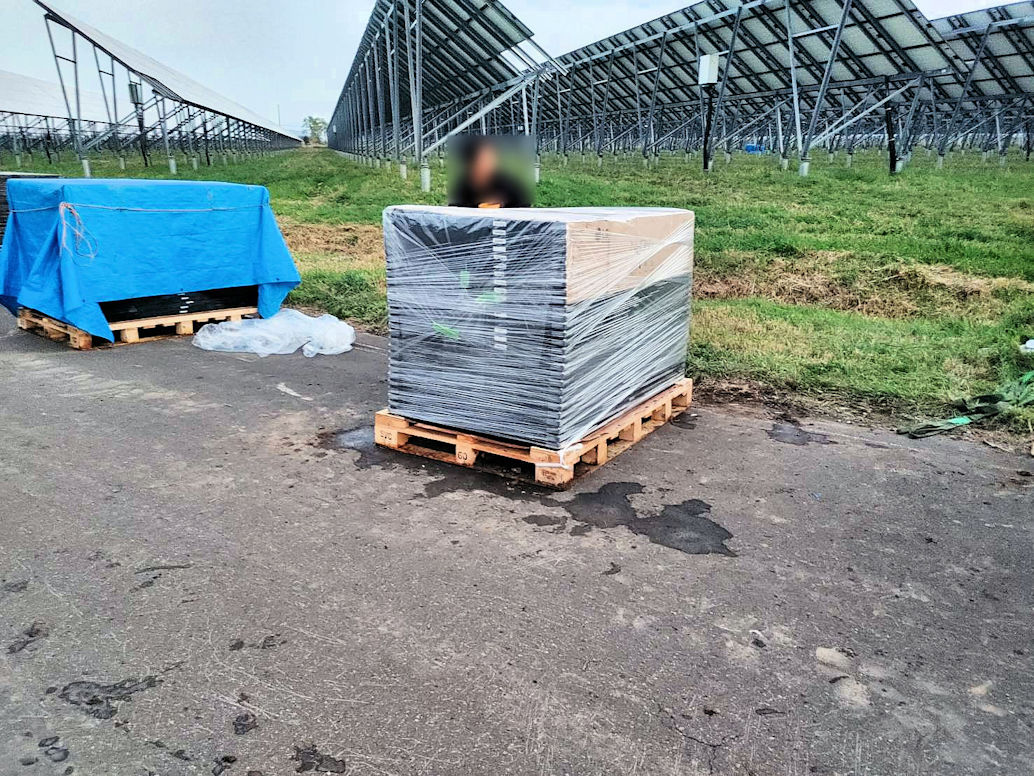

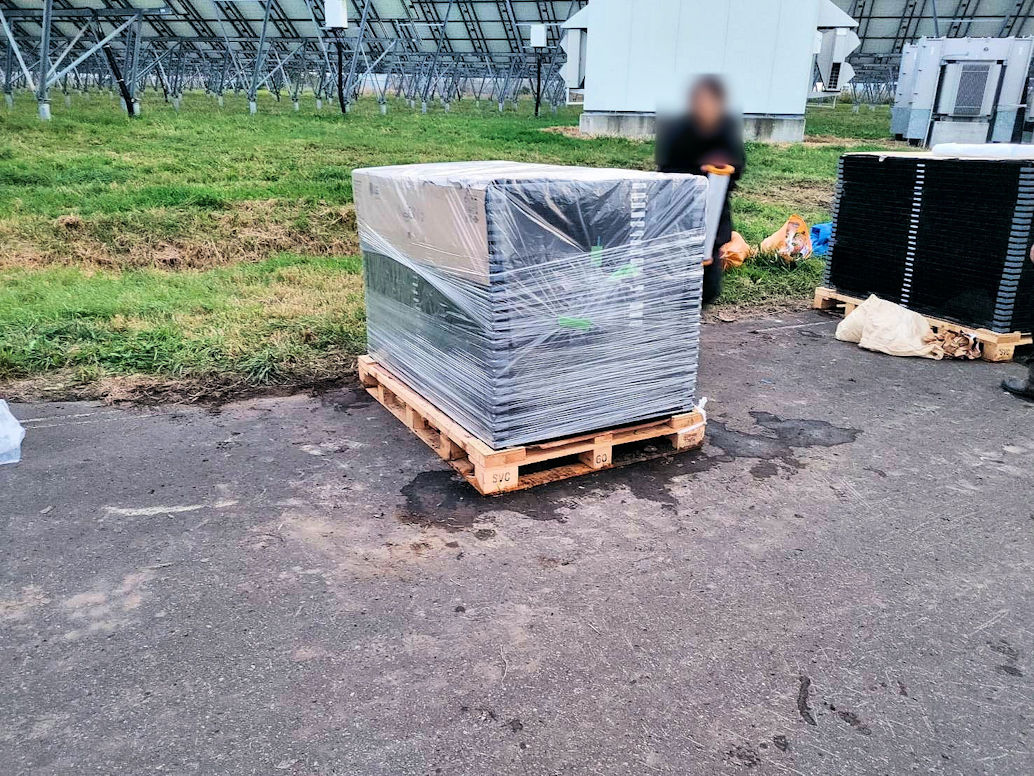

The removal of 1,400 sheet was completed on June 14th.
The remaining 935 sheet will be resumed on July 19th and will be completed by July 30th.
The reason is that there is construction work to install new solar panels
in Hokkaido. |
| 単結晶 |
| 2,335枚 |
| 北海道岩見沢市 |
| 現状置場渡し |
| 海外型式はLG305N1C-B3です |
| Sales price on Request |
| Removal is scheduled for June 30th. |

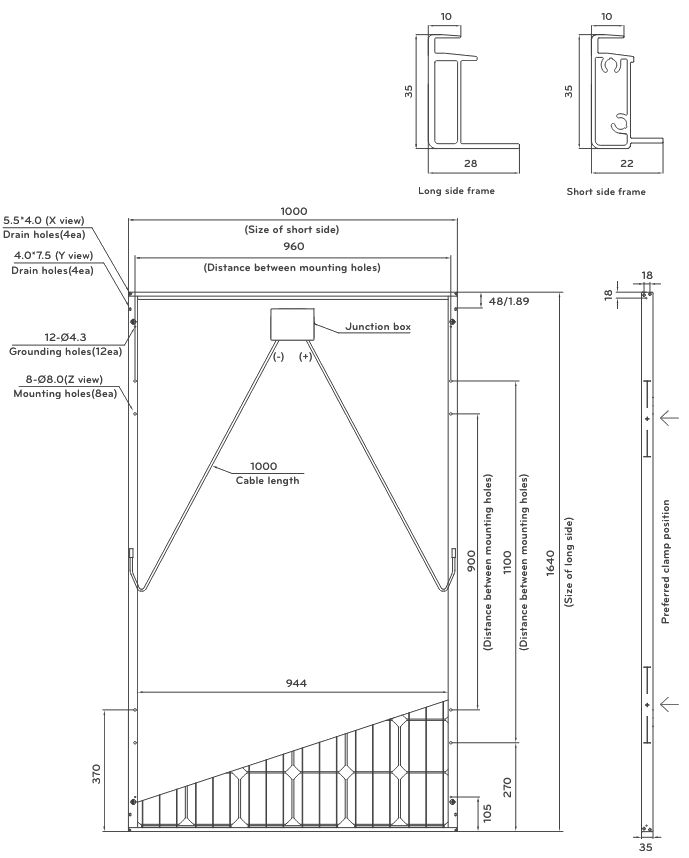

Panel size
長さ: 1640mm 幅: 1000mm 厚さ: 35mm 重量: 17kg
| 公称電力 (Pnom) |
: 305 w |
| パネル変換効率 |
: 20.1% |
| 定格電圧 (Vmpp) |
: 32.1 v |
| 定格電流 (Impp) |
: 9.52 A |
| 開放電圧 (Voc) |
: 40 V |
| 短絡電流 (Isc) |
: 10.1 A |
| 最大システム電圧(v) |
: 1000 IEC |
| 最大直列ヒューズ |
: |
| 出力温度係数 |
: |
| 出力電圧温度係数 |
: |
| 出力電流温度係数 |
: |

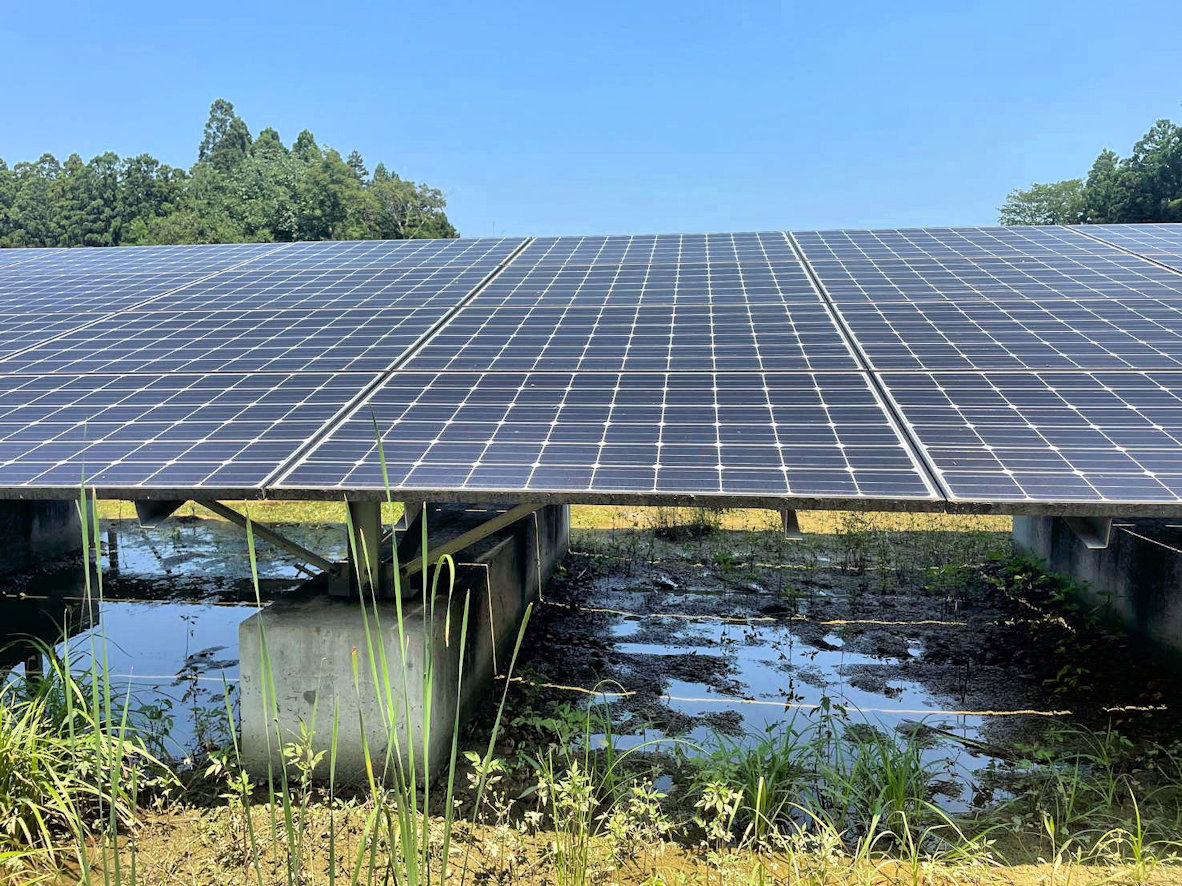

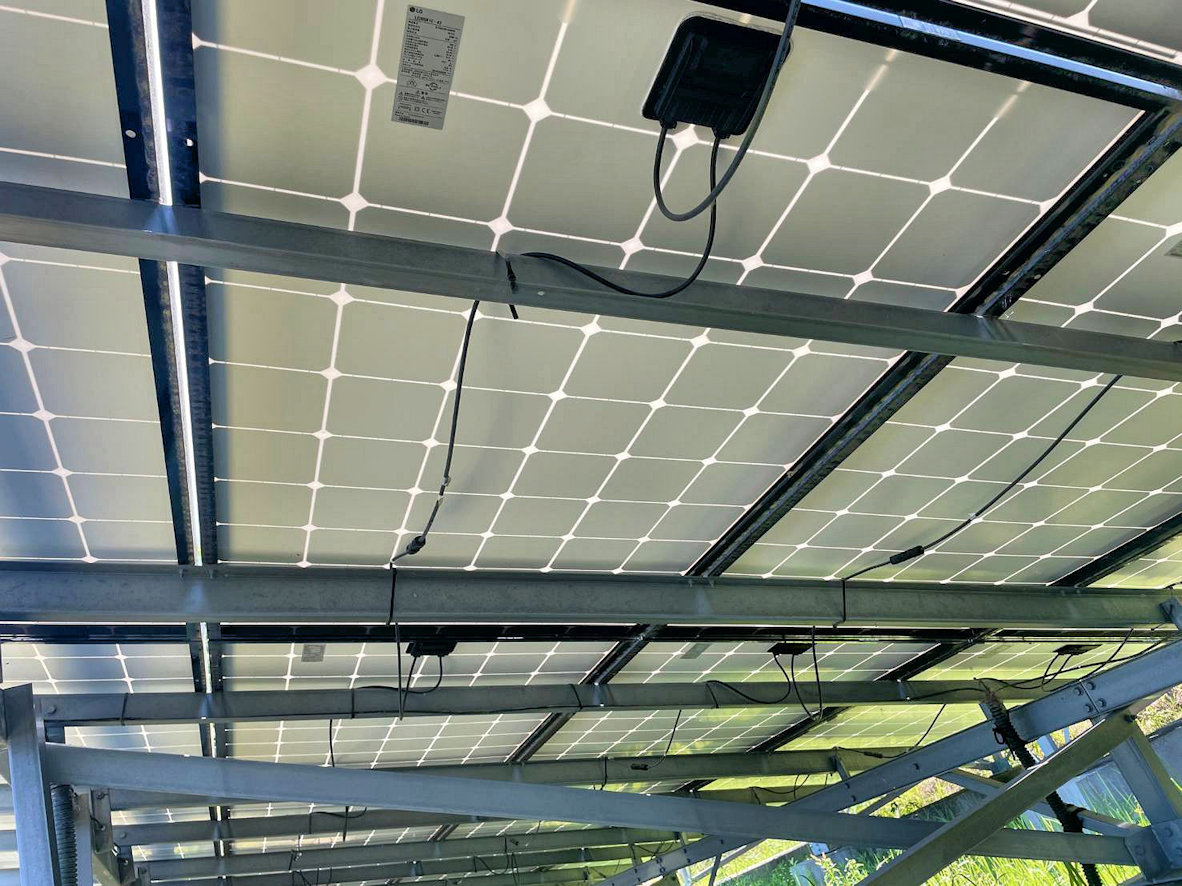

| 現在発電中です |
撤去は6月14日 1400枚取り外し完了
残りは7月19日再開 7月30日完了予定 935枚
価格はお問い合わせください
Dimensions (mm) D 1640 x W 1000 x H 35
Weight: 17kg
